If you’ve ever shopped online for a new Goulds water pump, you might have noticed how annoying it can be. There are many parameters to consider when it comes to Goulds J Series water pumps. If you’re not a professional, it’s easy to get confused. You might accidentally buy a unit that doesn’t completely suit your needs and simply waste the money.
That’s why we at Water Filters Advisor are presenting you with the best units manufactured by Goulds Pumps. With many satisfied customers around the world, Goulds is one of the leading brands in the market. Let’s check out their fantastic J-Series water pumps!
Our Comparison Table
Goulds J Series Water Pumps | 7 Expert Reviews
1. Goulds J7S Single Hose Water Pump
| Dimensions: | 21 x 12 x 11 inches |
| Material: | Cast Iron |
| Horsepower: | 0.75 |
| Certification: | NEMA standards |
| Special features: | It comes at a decent price |
Although this unit isn’t the most powerful on the market, it’s ideal for most households and is sold for a decent price. For around $500, you will get a water pump with ¾ horsepower, which works at 3500 RPM. Goulds J7S also meets NEMA standards and has a 115/230V capacitor start.
But that’s not all the J7Z model has a few more interesting features to offer. For example, it comes with a built-in overload with automatic reset. Of course, the shaft is corrosion-resistant and made of stainless steel.
This Goulds J Series water pump has well-engineered plastic tubing and fittings, which allow for easy cleaning. The body is made of cast iron, which is sturdy and very durable. It’s an ideal unit for most homes and cottages and makes an excellent long-term investment.
2. Goulds J10 Double Hose Water Pump
| Dimensions: | 24 x 13 x 10 inches |
| Horsepower: | 1 |
| Certification: | NEMA standards |
| Special features: | Excellent for continuous operation |
If you need a slightly more powerful unit, the J10 might be your best choice. It provides 1HP power output and is excellent for continuous operation. Besides, the J10 comes with a pressure regulator, which is very important for preventing pressure-caused unit damage.
Like most Goulds models, this Goulds J Series water pump also has a protected mechanical seal. It satisfies NEMA standards and has excellent air handling ability. The unit has a special pull-out design, which allows for easy access to the wiring nozzle plug.
The J10 is not much different than the J7S. It’s also built for average homes and cottages but provides more power. On the other hand, more power requires more electricity, which affects the bills. If you don’t need 1HP output, buying the J7S would be a better choice.

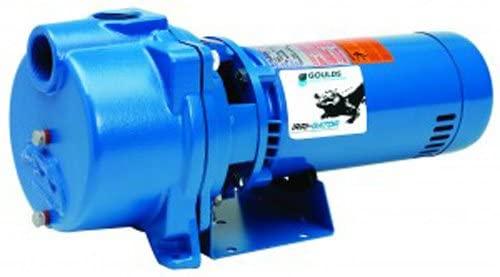

3.Goulds GT15 IRRI-Gator Self-Priming Water Pump
| Dimensions: | 22 x 9 x 10 inches |
| Horsepower: | 1.5 |
| Certification: | FDA Compliant Impeller |
| Special features: | Self-Priming Design |
One of the nicest features of the GT15 is its self-priming ability. When the water level rises to a certain point, it will reprise. Like J10, it also comes with a back pullout design, which allows easy servicing.
Another great feature is the diffuser. It has a stainless wear ring, which increases performance. The unit is FDA compliant and contains food-grade, glass-filled Lexan, which improves the unit’s durability and abrasion resistance.
Like the previous two models, this Goulds J Series water pump works at 60Hz and 3500 RPM. However, it provides a 1.5 HP output, which is ideal for heavy-duty work. This unit also meets NEMA standards and is ideal for lawn sprinkling and irrigation.
4. Goulds J5S Shallow Well Jet Pump
| Dimensions: | 17.25 x 9.88 x 8.75 inches |
| Horsepower: | 1/2 |
| Certification: | NEMA standard |
| Special features: | Built-in shallow well adapter |
With the built-in shallow well adapter, you won’t need to buy a separate unit. Goulds J5S saves you from extra costs while providing exceptional quality. Due to its design, the J5S is very easy to service and maintain, and provides an extended lifespan.
The manufacturer applied the electro-coated paint process inside and outside of the unit, which makes it durable and corrosion-resistant. Also, the unit comes with a protected mechanical seal, which ensures that the seal never gets dry.
This shallow well pump works on 3500 RPM and provides a ½ HP output. It’s not a heavy-duty water pump but is ideal for most homes and cottages. The pump comes with 1.25-inch NPT suction and a 1-inch discharge. It’s easy to install and requires no special tools. However, be sure to check the user manual first. If you have any problems with wiring, it’s better to call a professional.
6.Goulds J10S Shallow Well Jet Pump
| Dimensions: | 18.75 x 9.88 x 8.75 inches |
| Horsepower: | 1 |
| Certification: | NEMA standard |
| Special features: | It consumes very little energy |
If you’re in the market for a jet water pump, Goulds J10S is an excellent choice. It has an integral shallow well jet, and a body similar to the models from above. It is strong and sturdy, and like most units, corrosion-resistant. Currently, the J10S is among the best jet pumps in the market.
What we like the most about this Goulds J Series water pump is its electricity consumption. While providing the output of 1HP, it will consume less energy than most similar models on the market. It’s an excellent money saver that still provides fantastic quality.
Goulds J10S satisfies NEMA standards and works on 60 Hz and 115/230 Volts. It features a back pullout design, a mechanical seal, and a two-compartment motor. Also, it can provide around 12 GPM from a pumping depth of 20′, which is very good.
6. Goulds J7S Shallow Well Jet Pump
| Dimensions: | 21 x 12 x 11 inches |
| Horsepower: | 3/4 |
| Certification: | NEMA standard. FDA Compliant |
| Special features: | Excellent air handling ability |
The Goulds J7S is almost the same as the J10S. They online differ by the power output. Unlike J10S, this model provides a ¾ HP output, which is enough for most homes and cottages. Also, less horsepower means lower electricity consumption, which is another plus.
The Goulds J Series water pump comes with an automatic reset and a pressure regulator. After you do the initial priming, you won’t have to do it again. The pump will re-prime itself from then on. One thing to notice is that all of Goulds’ models are tested before selling, so don’t be surprised if you find traces of water on the inside.
The body of the J7S is made of cast iron, which grants it durability. The pump also comes with a stainless steel shaft and strong plastic parts.
7.Goulds J10 Double Nose Deep Well Jet Pump
| Dimensions: | 24 x 13 x 10 inches |
| Horsepower: | 1 |
| Certification: | NEMA standard |
| Special features: | Specifically designed for homes farms cottages and booster services |
If you need a unit for deep wells, the J10 might be your best choice. At first glance, it’s similar to the J10S but is made for deep wells. The pump provides a 1HP output and works on 60Hz and 110/230 Volts.
Like most Goulds models, J10 is corrosion-resistant and has a protected mechanical seal. Besides, the unit has fantastic air handling ability and satisfies NEMA standards. It’s powered for continuous operation and comes with a pressure regulator switch.
Goulds J Series | Main Features & Benefits
The Goulds company has produced many series of water pumps and submersible well pumps. However, the most popular on the market is the J Series. These units are specifically made for homes, cottages, and average farms. After comparing the units, we noticed that each pump in the J Series has a few things in common.
At first, each unit has a special back pullout design. This allows for easy service and maintenance, without having to necessarily deal with the piping. It also gives you easy access to wiring nozzle cleanout plugs.
Each Goulds J Series water pump is made of very strong and durable materials. Their body is heavy and may withstand an increased workload. They also come with a corrosion-resistant shaft, which improves the unit’s lifespan.
There are a few more things that J Series models have in common. They are optimized for continuous operation and come with a useful pressure regulator. Most units have a protected mechanical seal and satisfy NEMA standards.
Pipe Volume and Velocity
The volume and velocity of the pipe is an important consideration. If the system is unable to maintain or exceed a certain velocity, the pipes will get clogged over time. Therefore, you will need to do servicing, and invest more money.
When the pipe size is bigger, it provides a higher volume in Gallons per Foot. For example, a ¼-inch pipe should provide 0.06 GPF, while a larger, 12-inch pipe should provide 5.87 GPF. A similar rule applies to velocity. If the pipe has a ¼-inch diameter, the minimum GPM (gallons per minute) should be 9. On the other hand, a large, 12-inch pipe should be able to achieve 700 GPM.
You can see specific info for each pipe size in the image below:
Environmental Safety
When using devices such as water pumps, you should always aim to be as environment-friendly as possible. Here’s exactly what that looks like.
First, you should always appropriately dispose of all waste and clean up any spills. By doing so, you protect the environment from harmful substances. You should also notify local authorities about the environmental emissions of the unit.
If the unit gets contaminated in any way, don’t send it to ITT immediately. It will need to be decontaminated first, so you should report it to ITT before returning.
NSF 61-Certified
All Goulds water pumps have an NSF 61 certification. Earning an NSF certificate is not a simple task. The units must pass rigorous testing and meet various requirements. If the product is NSF-certified, you can be sure you’re purchasing a quality unit.
NSF is a global, independent organization. It creates standards for products related to food, water, and environmental protection. The organization was founded in 1944 and is the most œdesirable certificate today.
Goulds Water Pumps | Performance
Unlike most water pumps on the market, the performance of these units differs depending on the application configuration and fittings. The chart below shows the performance of J Series units for a shallow well.
Adjusting the Pressure Switch
Although simple to do, proper adjustment of the pressure switch is essential. First, you need to find œD switches, and the rest is very simple. For higher cut-in pressure, turn the nut down, and vice versa. The same goes for the cut-out pressure. However, to prevent damage, don’t exceed the maximum allowed system pressure. You can also use the mainspring to increase/decrease both cut-in and cut-out pressures at the same time. The pressure will change for 2 PSI per one turn. On the other hand, you can use differentials to adjust cut-out pressure only. It will increase/decrease the pressure by 3 PSi per one turn.
What Do These Pumps Treat?
You can use water pumps for several purposes. Generally, the water pump is a device used for moving water. You can use it to supply water storage tanks, suck water from a well, or various other purposes. However, you should always buy the unit to fit your needs. The most powerful units are not always the best; more power requires more electricity.
Installation Step by Step Guide
The installation of any of these units is basically the same. It’s very simple, especially if you carefully follow our guide. So, let’s start with the first steps.
Preinstallation
Before you start with the installation, there are a couple of things that you need to do. At first, make sure that you don’t place the pump in a tight space. The location should allow proper ventilation and enough space for the inspection and maintenance of the unit.
You should also protect the pump from weather and water damage. For example, it shouldn’t be in an area prone to flooding or be exposed to freezing temperatures. Another essential thing is noise. While working, the pump makes small vibrations, which might be noisy sometimes. That’s why we advise you to install the pump on a concrete floor with subsoil underneath.
If you need to place the pump in a potentially explosive environment, you need to follow a few tips. First, make sure that the motor has all the proper certifications. Then, the unit must be properly grounded, or any unexpected discharge can cause serious injuries. Ensure that all electrical connections are made in compliance with national, stage, and local regulations.
Baseplate Mounting
Let’s start with mounting the baseplate. Remove all the attachments from the baseplate, and clean the bottom side completely. Using the proper solvent, remove the rust-proofing coat from the mounting pads. Then, remove any dust from the holes of the foundation bolts.
Now, you need to ensure that the grout won’t enter bolt holes. We advise you to fill the bolt sleeves with old pieces of cloth, or any similar material. Now, you will need two wedges or shims for each foundation bolt. Put them on each side of the bolt, and lower the baseplate onto the foundation bolts. Then, using machinist levels, level the base plate so that it’s in the right position. Most likely, you will receive a baseplate-leveling worksheet, which will help with positioning. When it’s positioned properly, tighten the nuts at the foundation, and you are done.
Installing the Pump, Driver, and Coupling
Using the proper bolts, mount the pump on the baseplate. Then, mount the driver on a baseplate and install the coupling. Depending on the model, you might notice a slot for high-temperature dowelling. If that’s the case, you need to do a few more things.
First, make sure that the parallel dowel is in the middle of the unit. Then, tighten the bolts closest to the driver, but don’t overtighten them. Outboard bolts are a bit different. You should tighten them only around 15-20% of the standard value. It will allow the pump to expand as the temperature increases, but still keep it aligned to the driver.
Pump-to-Driver Alignment
Make sure that the driver is disconnected from any power source. Otherwise, it might lead to very serious injuries or even death. We strongly advise you call an electrician to do all the needed electrical connections.
Doing pump-to-driver alignment includes various alignment checks. Don’t skip out on these steps, especially if the process temperature changes or the pump has been serviced. Check the user manual for the necessary comparison and troubleshooting tables.
After you do the checks, you need to perform a vertical angular alignment. Set the indicator to zero and rotate it to the bottom-center position. Carefully inspect the readings and check the manual. It clearly explains what to do if the readings are either positive or negative.
According to the manual, you may also need to perform horizontal angular alignment and horizontal and vertical parallel alignment.
Grout the Baseplate
The required equipment for this part includes cleaners and grout. However, don’t use oil-based cleaner because it will prevent the grout from bonding. Also, we recommend using a non-shrink grout. Before you start, clean all parts of the baseplate that will have contact with the grout.
Form a dam around the foundation and make sure that the foundation is wet, especially those parts that will come in contact with the grout. Pour the grout through the hole, up to the level of the dam, and wait until it sets. Fill the rest of the base plate and let it rest for at least two full days. Then, remove the jackscrews and tighten foundation bolts.
Maintenance
When it comes to maintenance, we strongly advise you to think about safety first. For example, too much heat to impellers might cause the liquid to expand and cause an explosion. If you don’t disconnect the driver from the power source, it might even lead to death. Also, be sure to wear proper equipment when dealing with the pump, and call a professional if necessary.
Maintenance requires three types of inspections: routine, three-month, and annual inspections.
Routine inspections include checking the pump for noise vibration, temperature, leaking, and similar issues. A three-month inspection requires you to check if the bolts are tight and re-aligning the shaft if necessary. Annual inspection requires checking the pump’s capacity, power, and pressure.
Compared with most kinds of water sump pumps, Goulds J Series water pumps don’t require lots of maintenance. Simply do a basic check now and then, and don’t forget about the three-month and annual inspection. That’s it!
Warranty
There are two things to clarify about warranty coverage and limitations. The Goulds company promises to cover any malfunction as long as the following conditions were met:
- The malfunction happened due to defects in design or workmanship
- The warranty period has not expired
- The unit was used as described in manual
- All servicing was done by ITT-authorized personnel
- Original ITT parts were used
The company won’t cover malfunctions caused in the following situations:
- Improper installation
- Improper repair work
- Normal wear over time
- Repairing without consulting the company
FAQs
How Long Do Water Pumps Last?
It mainly depends on maintenance, usage, and unit quality. However, with an average life of 10 years, some pumps can even reach 15 years if treated well.
Do Water Pumps Use Alternating or Direct Current?
Most water pumps use AC. AC is cheaper, provides good power output, and is widely available.
What Does a Self-Priming Pump Do?
Self-priming pumps are able to use the liquid stored in its body to create a vacuum. However, even a self-priming water pump won’t operate if it gets dry.
Conclusion
As you might have noticed, choosing the proper water pump is not always easy. However, you can’t go wrong by choosing any Goulds J Series water pumps. They all offer fantastic quality at a relatively affordable price. Most J Series units are economical and provide a decent power output. If it’s time to replace your old pump, be sure to check out Goulds J Series!
